Overview

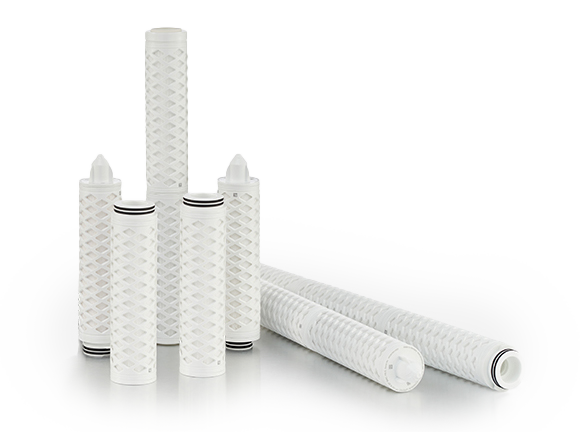

LifeTec PES pleated cartridge filters leverage advanced polyethersulfone membrane technology to deliver reliable microbial retention, high flow rates, and long service life. For sterile food and beverage applications requiring increased throughput and lower pressure drop, selected filter elements are available with Alpha-Pore™ technology, featuring a highly asymmetric membrane structure engineered to maximize permeability, extend filter life and maintain filtration performance.

Constructed from durable polypropylene with pleated PES filter elements, they provide excellent mechanical and thermal stability and support food contact regulatory requirements.

All components of PES Liquid Filter Cartridges meet U.S. and EU requirements for Food Contact Use in accordance with the Code of Federal Regulations (CFR) Title 21 and Regulation (EC) No. 1935/2004 and subsequent amendments. All materials used do not contain any Substances of Very High Concern (SVHC) as defined in EC/1907/2006 and EC/65/2011.

LifeTec™ Alpha-Pore™ W Liquid Filter Element

LifeTec™ Alpha-Pore™ W is a sterile-grade, pleated asymmetric polyethersulfone (PES) membrane filter designed for sterile filtration and microbial stabilization of water-based liquids.

The permanently hydrophilic membrane and robust filter construction make it suitable for water filtration applications in beverage, dairy, and process industries.

Features & Benefits

  • Proprietary Alpha-Pore membrane technology delivers up to 2.5x longer filter life while maintaining sterility and filtration performance*
  • Sterile-grade 0.2 μm asymmetric PES membrane
  • Permanently hydrophilic membrane construction
  • Extremely low protein adsorption
  • Highly resistant materials with high thermal stability
  • Steam sterilizable
  • Materials comply with FDA and EU food-contact requirements

Applications

  • Final filtration of mineral, spring, table and potable water
  • Filtration of deionized, chemically treated, process and ingredient water
  • Drinking water treatment and bottling
  • Soft drink manufacturing
  • Dairy processing
  • Chemical process water and media treatment

* Results are based on internal laboratory testing and comparisons with multiple leading single- and dual-layer PES filter cartridges. Performance may vary depending on operating conditions and application requirements.

LifeTec™ PES-WH Liquid Filter Elements

The LifeTec™ PES-WH filter element is a sterile-grade, pleated, highly asymmetric Polyethersulfone (PES) membrane filter for sterile filtration and microbial stabilization. Its hydrophilic PES membrane features a highly asymmetric pore structure with pore size that decreases toward the center, creating a highly porous medium that maintains consistent porosity and impurity retention throughout service life without shedding or unloading contaminants.

The PES-WH filter element’s highly asymmetric PES membrane is engineered for higher permeability and lower pressure drop compared to symmetric membranes; This design helps support contaminant loading and fouling management, which may contribute to longer service life across a wide range of liquid processing applications.

Features

  • Sterile-grade membrane filter with 0.2 µm rating.
  • Highly asymmetric membrane for high flow rates.
  • Engineered to improve contaminant loading capacity and reduce fouling versus symmetric membranes, helping support longer service life.
  • Extremely low adsorption of proteins; permanently hydrophilic with high thermal stability.
  • Manufactured in a Class 7 cleanroom; integrity tested (all 10" sterile modules); serial number traceability.
  • Food-contact compliance as detailed in the datasheet.



Applications

Final filtration of water:

  • Mineral water
  • Spring water
  • Table water
  • Potable water

High-quality filtration for ultrapure water requirements:

  • Deionized water
  • Chemically treated water
  • Process water
  • Ingredient water

LifeTec™ PES-WN Liquid Filter Elements

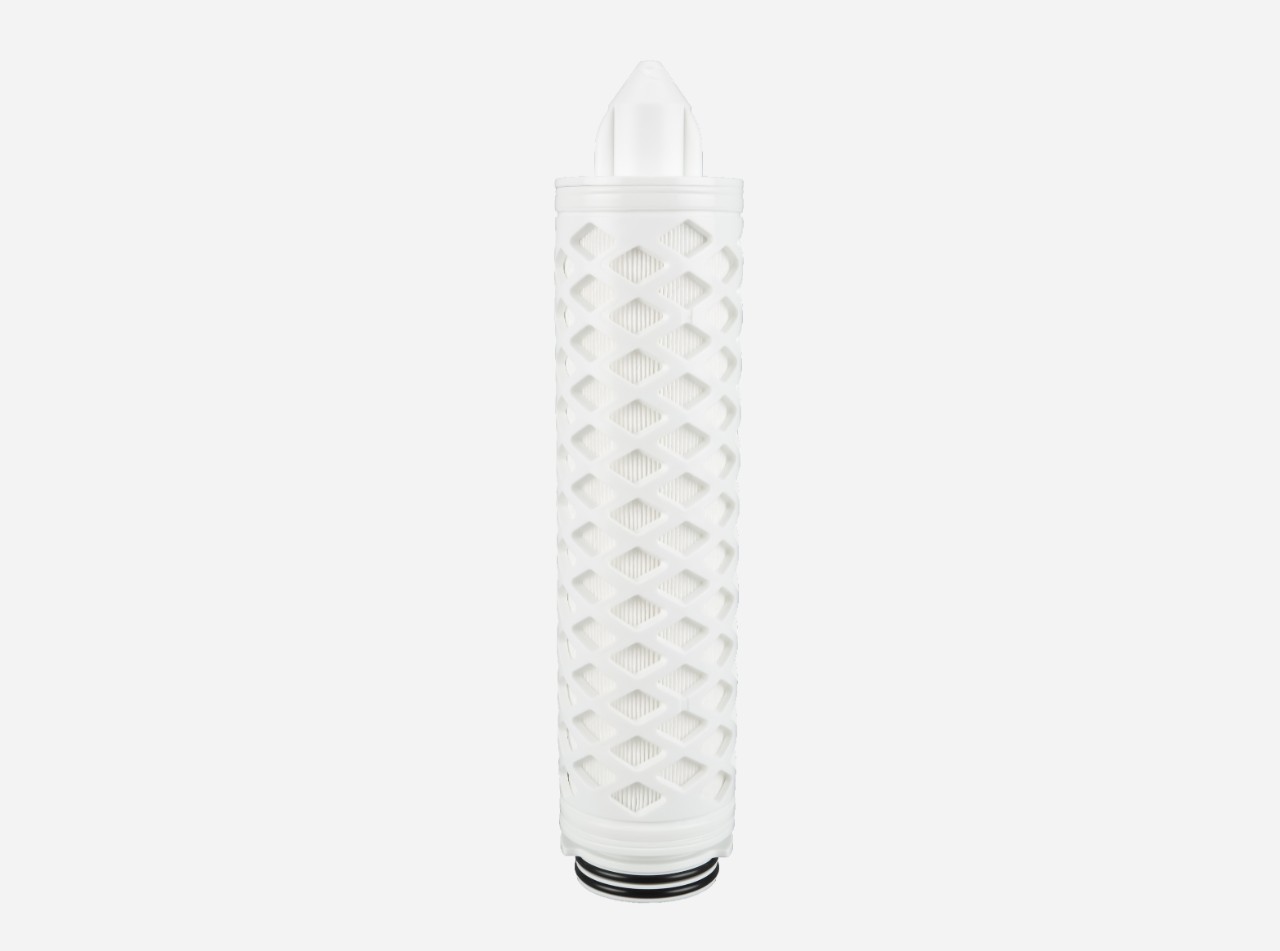

The LifeTec™ PES-WN filter is a sterile grade, pleated high-performance polyethersulfone membrane filter.  This PES cartridge filter is designed for sterile filtration and microbial stabilization of food ingredients and beverages.  This extremely durable design maintains consistent porosity and impurity retention throughout its service life without shedding or unloading contaminants.

Features

  • Sterile grade filter cartridges with a log reduction value (LRV) of 7 for 0.2, 0.45 & 0.6 micron
  • Excellent flow rate and impurity retention
  • Robust polypropylene design resists deformation
  • Extremely low protein adsorption
  • High thermal stability; permanently hydrophilic membrane filter
  • Long-lasting PES pleated filter elements
  • Certified to NSF/ANSI Standard 42
  • Available with EPDM or Silicone O-rings



Applications

Clarification and sterilization of:

  • Mineral and Spring Bottled Water
  • Ingredient Water
  • Juice
  • Soft Drinks
  • Processed Food Ingredients
  • Alcoholic Beverages

LifeTec™ PES-BN Liquid Filter Elements

The LifeTec™ PES-BN filter element is a high-efficiency PES pleated cartridge filter designed for reliable final filtration and microbial stabilization of beer, wine, and hard seltzers. It delivers high filtration performance, long service life, and exceptional stability, making it ideal for beverage clarification.

Constructed with durable materials and pleated PES filter elements, it offers superior mechanical and thermal stability in demanding beverage applications.

Features

  • Sterile grade filter cartridges with absolute ratings of 0.45 or 0.8 micron
  • Excellent flow rate and low protein adsorption
  • Highly resistant materials
  • Highly asymmetrical membrane design
  • High mechanical and thermal stability
  • Permanently hydrophilic membrane filter
  • Available with EPDM or Silicone O-rings



Applications

The LifeTec™ PES-BN 0.45 and 0.8 PES cartridge filters are designed and developed for:

Beverage clarification:

  • Beer
  • Beer mix
  • Wine
  • Spirits

Clarification and final filtration of:

  • Ingredient water
  • Soft drinks
  • Bottled water

LifeTec™ PES-BN A Liquid Filter Elements

The LifeTec™ PES-BN A filter element delivers high-performance final filtration, stability, and long service life for microbial stabilization of beer, wine, and hard seltzers.

This PES pleated cartridge filter is engineered for demanding beverage applications where consistent quality and sterile grade filtration are essential.

Features

  • Absolute grade rating of 0.45 or 0.65 micron
  • Excellent flow rate
  • Highly resistant materials
  • Highly asymmetrical membrane design
  • High mechanical and thermal stability
  • Available with EPDM or Silicone O-rings



Applications

The absolute rated LifeTec™ PES-BN A membrane filters are designed and developed for:

Beverage clarification:

  • Beer
  • Beer mix
  • Wine
  • Hard Seltzer
  • Spirits

Clarification and final filtration of:

  • Ingredient water
  • Soft drinks
  • Bottled water
