Overview

The Donaldson pleated stainless steel filter elements provide high particle or dirt holding capacity and a high flow rate at low differential pressures. They can be used as pre and final filtration, where the stainless-steel filter matrix can be regenerated by back flushing. This is especially important at higher particles loads.  All components meet US and EU requirements for Food Contact Use in accordance with the Code of Federal Regulations (CFR) Title 21 and Regulation (EC) No 1935/2004 and subsequent amendments.

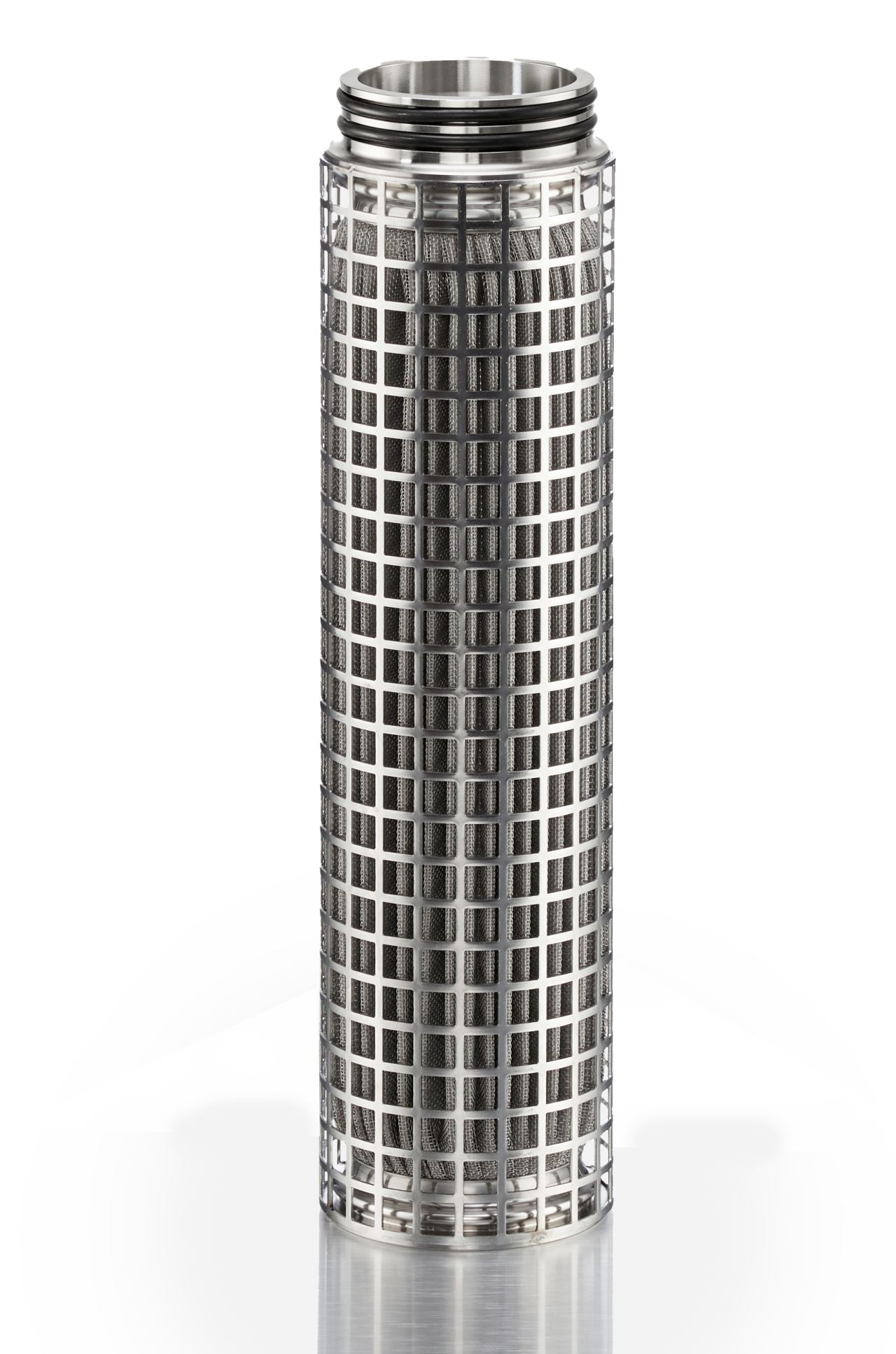

LifeTec™ P-GSL N Liquid Filter Elements

The Donaldson LifeTec™ P-GSL N pleated stainless steel filter element is constructed of 100% stainless steel, making it ideal for high-temperature liquid filtration and demanding applications. This metal filter cartridge is fully regenerable and captures a wide range of contaminants such as particles, abrasion debris from valves and sealings, and rust.

As a pleated filter cartridge, the LifeTec™ P-GSL N offers increased surface area for filtration, delivering higher flow rates at lower pressure drops. Its stainless steel filter cartridge design allows for back-flushing or ultrasonic cleaning, significantly extending its service life and reducing total cost of ownership.

Features

  • Pleated stainless steel filter for efficient contaminant capture
  • Regenerable via back-flushing or ultrasonic cleaning
  • High flow performance with minimal pressure drop
  • Long-lasting, reusable design for lower cost of ownership
  • Nominal particle retention in liquid applications



Applications

Liquid filtration:

  • Water filtration
  • Chemicals
  • Solvents
  • Pharmaceutical industry
  • Food and beverage
  • Syrup
  • Cosmetics
  • Paints
  • Salt- and Seawater
  • Coolants

LifeTec™ GSL N HF Liquid Filter Elements

The LifeTec™ GSL N HF filter element features a regenerable, pleated stainless-steel filter matrix for high-performance prefiltration and final filtration applications.

Available in 1, 5, 25, and 50 μm absolute retention ratings and 40" and 60" lengths, it delivers reliable filtration performance, even under high particle loads. The robust all-stainless-steel, plasma-welded construction allows effective backflushing for extended service life and reduced maintenance requirements.

The GSL N HF filter elements offer integrated handles to support fast and convenient element replacement and compatibility with most competitive housings for straightforward installation.

Features

  • Reinforced pleat design and plasma-welded construction for exceptional durability
  • Robust design helps reduce maintenance requirements and operating costs
  • 316L stainless steel construction for high-temperature applications up to 150 °C/302 °F (O-ring dependent)
  • Withstands differential pressures up to 10 bar/145 psi (out-to-in) for effective backwashing
  • Large filtration area supports easy cleaning and extended service life
  • Absolute-rated filtration in 1, 5, 25, and 50 µm grades improves reliability in demanding processes
  • Inside-to-out flow design helps minimize contamination during filter changeout



Applications

Liquid filtration:

  • Water filtration
  • Chemicals
  • Solvents
  • Pharmaceutical industry
  • Food and beverage
  • Syrup
  • Cosmetics
  • Paints
  • Salt- and seawater
  • Coolants
